Mini Dexed
FM synthesizer closely modeled on the famous DX7
  • Digital
  • Raspberry
  • MIDI
  • FM

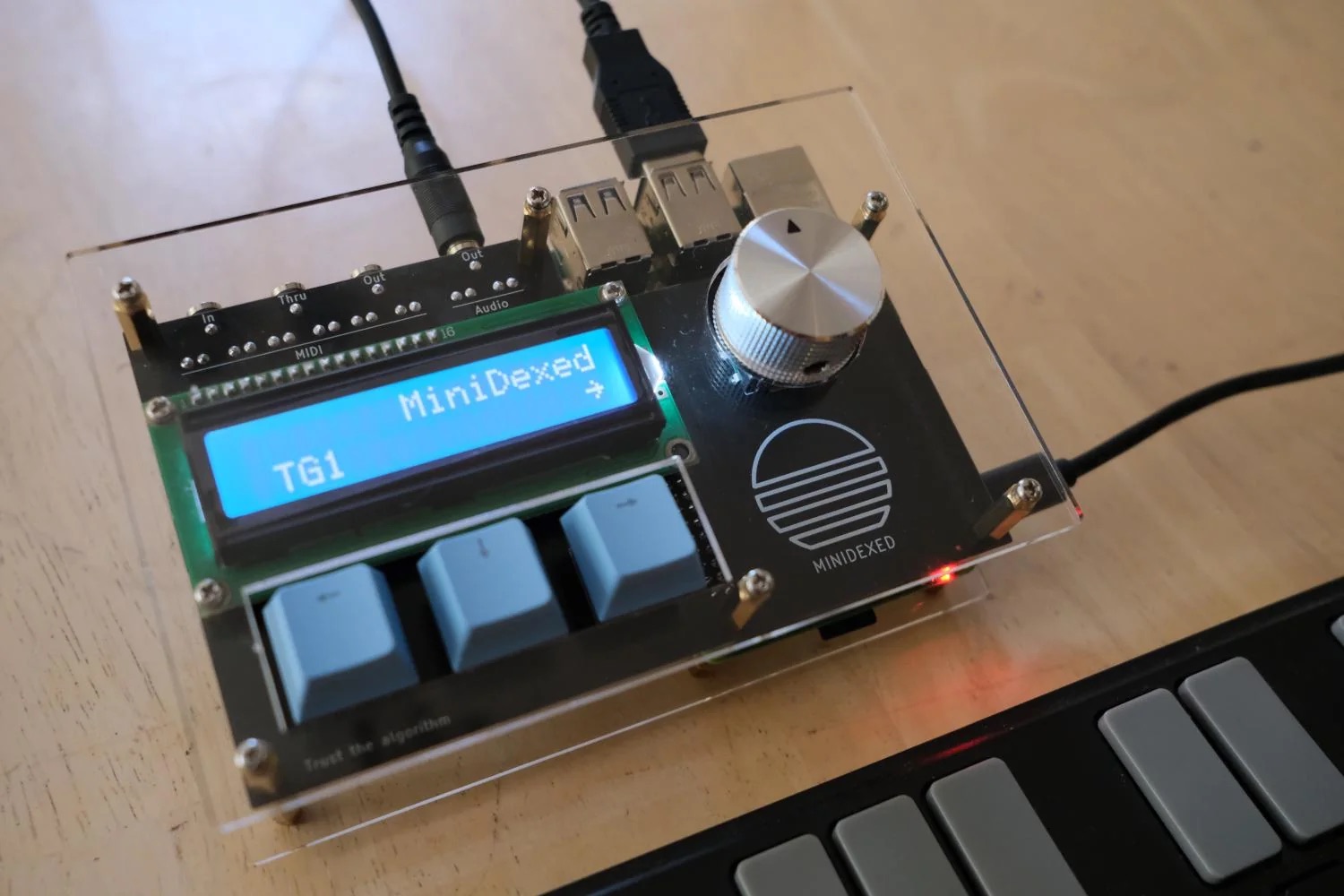

MiniDexed is a FM synthesizer closely modeled on the famous Yamaha DX7 running on a bare metal Raspberry Pi (without a Linux kernel or operating system). On Raspberry Pi 2 and newer, it can run 8 tone generators, not unlike the TX816/TX802. It is 8 DX7 instances without a keyboard in one box.

Go to project
Probonopd
Beginner
  • +Schematic
  • -PCB source
  • -Gerbers
  • +BOM
  • +FW
  • +Docs
  • +Enclosure
